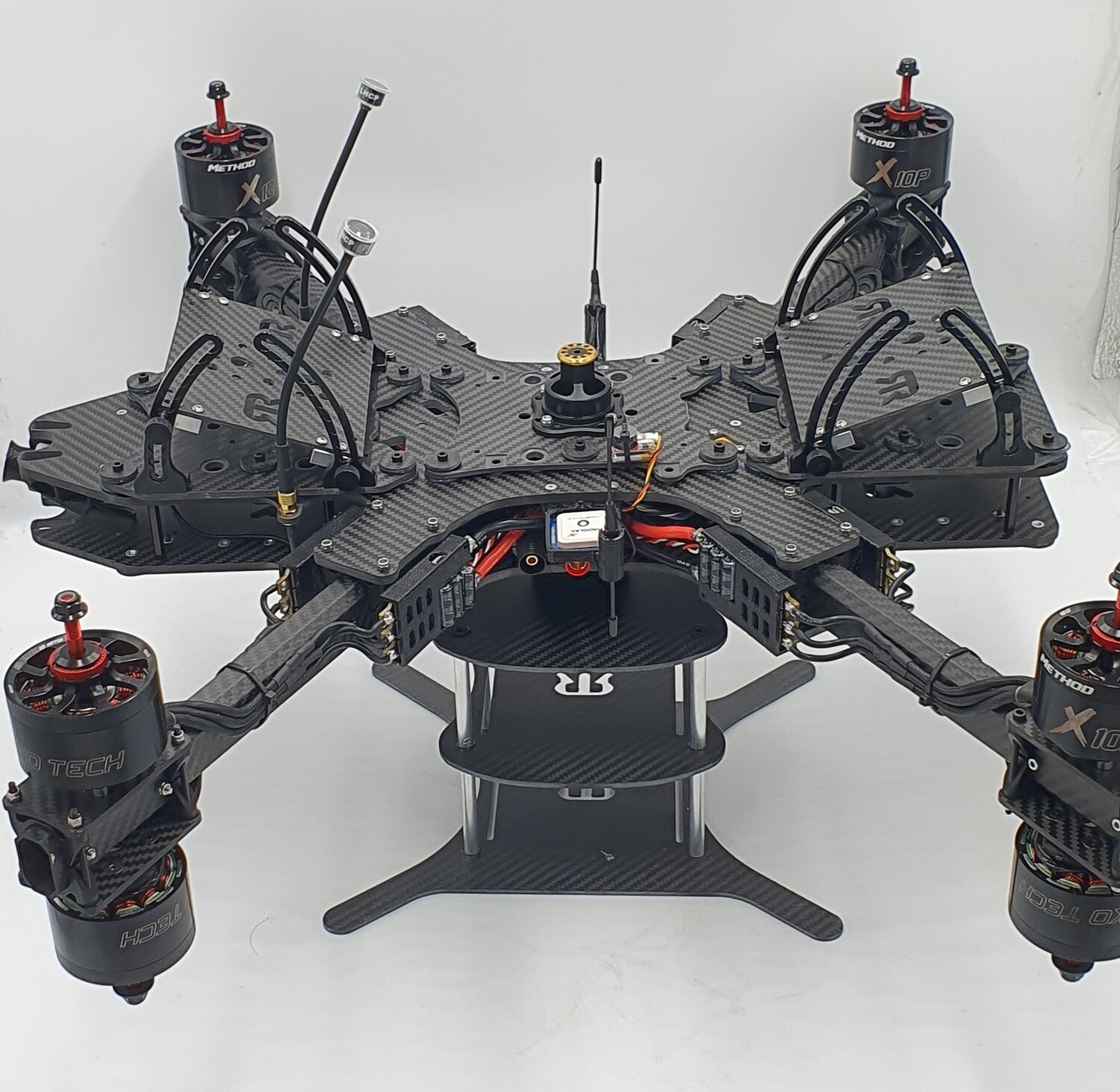

RR Alligator X8 12s Cinelifter Frame is the ultimate and most versatile FPV Cinelifter platform, designed for cinematic shots carrying up to 8KG+ payload. (Arri Alexa Mini / REDs / MOVI / Ronin R2/RS2/RS3 )

KEY FEATURES:

6 x hardpoints, 3 on top with alphagel and 3 on bottom

no props on view at any angle.

forward and backward shots at same time.

Dual Battery tray/landing system

-50º to 50º fast and reliable aluminum system

Dual RS2/RS3 at front and back (top/bottom) for dual camera operator (RS2/RS3 landing legs coming soon)

Freefly Movii and DJI Ronin R2 top and bottom ready.

Factory FreeFly Toad quick release system for battery tray and gimbal on 6 hardpoints.

KO 5025 400kv /APD 200F3 ESC / MAS 13x12x3 props -> POWER

Designed to achieve simplicity, low weight, almost perfect COG with low drag design.

Payload and batteries can be switched and installed on top or bottom position, on 6 different hard points position.

Freefly Toad connection factory ready on top and bottom, ready for gimbal on top and bottom.

Fixed camera can be installed on top front or top rear part.

2 x Battery Tray / landing legs included

2 x RR AlphaGel Universal Camera KIT v5 included

2 x RR AlphaGel FreeFly Toad connection / Quick Release included

Designed to use with the best alphagel bushers to remove vibrations and jello for a butter smooth footage.

Camera can be switched from 0º to 50º (5º steps) using the included 3 types of carbon fiber side plates. Negative degrees (-10º/-15º) will be added soon as an upgrade.

Designed to fly with 12S power, reaching speeds of 200km/h with enough power to carry and move smoothly or savagely any camera setup up to 8KG+.

Recommended components:

• PDB: 2 x Advanced Power Drives PDB500
• Electronic Speed Controller: Advanced Power Drives F3 120 / F3 200
• Motors: Xnova Xclass 350kv (12S) / BH T10 5215 330kv / KO Motors
• Props: Master Airscrew / HQ 13x12x3 / Gemfan 13x10x3
• Flight Controller: Brain FPV Radix v2 30mmx30mm
• FPV Camera: All mini size cameras (22mm width) or DJI camera
• VTX: DJI Air Unit (dedicated mount available) or Caddx Vista mounting holes.
• FPV Antenna: All antenna models compatible (SMA mount available on both sides).
• Receiver: Crossfire Nano Diversity Rx (Inmortal mounts available on both sides)
• Gps: Matek M9N (3D printed mount available with Air unit mount)
• Recommended Lipos: up to 6 x 6s 5100/4500 Tattu R-Line 1.0 95c

All printed parts are available and can be downloaded in Files Tab

Production lead time + worldwide shipping usually between 3 to 6+ weeks.

Please contact us for more info or updated delivery/production lead time information.
