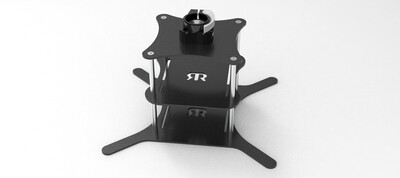

RR Beast Cinelifter is a custom Beast class frame designed for cinematic shots carriyng up to 3KG payload.
Designed to achieve simplicity, low weight, almost perfect COG with low drag design coming from a Beast (650mm) / Xclass (800mm) race frame.
Designed to use with the best alphagel bushers (6 units included) to remove vibrations and jello for a butter smooth footage.
Camera can be switched from 0º to 50º (5º steps) using the included 3 types of carbon fiber side plates. Negative degrees (-10º/-15º) will be added soon as an upgrade.
Designed to fly with 12S power, reaching speeds of 200km/h with enough power to carry and move smoothly or savagely any camera setup up to 3KG+.
Recommended components:
PDB: Advanced Power Drives PDB500
Electronic Speed Controller: Advanced Power Drives F120
Motors: Xnova Xclass 350kv (12S)
Props: Master Airscrew 13x12x3
Flight Controller: Brain FPV Radix 30mmx30mm
FPV Camera: All mini size cameras (22mm width) or DJI camera
VTX: DJI Air Unit (dedicated mount available) or Caddx Vista mounting holes.
FPV Antenna: All antenna models compatible (SMA mount available on both sides).
Receiver: Crossfire Nano Diversity Rx (Inmortal mounts available on both sides)
Gps: Matek M8Q-5883 (3D printed mount available with Air unit mount)
